E – Type Circlips

E – Type Circlips
E – Type Circlips
E – Type Circlips
E – Type Circlips

E – Type Circlips

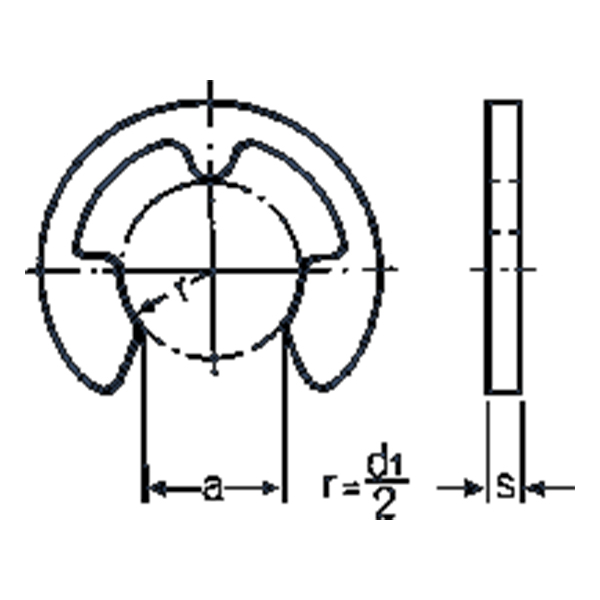

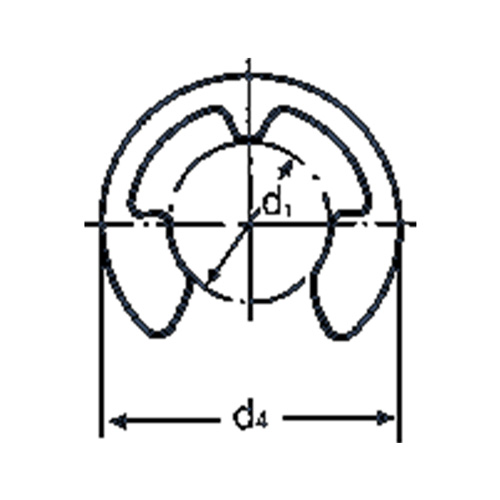

  • E – Type Circlips are manufactured according to DIN – 6799 & IS 3075
  • E – Type Circlips are manufactured from suitable HIGH CARBON SPRING STEEL as C- 80 of Is 1570- 1961 or En – 42 J.
  • E – Type Circlips are also available in SS – 304 material.
  • Range is from 0.8 TO 24MM

Covers the requirement of Circlips- type E for shafts of nominal size range of 0.8 to 30 mm.

The Circlips shall be manufactured from spring of grade such as 70C6 or 75C6 conforming to IS: 2507-1975 ‘Specification for cold rolled steel strips for springs. Hardness of Circlips shall be between 460 to 580 HV (corresponding to 46 to54 HRC).

All sharp edges shall be removed from the circlips. The circlips shall be free from burrs, cracks, laminations and other defects.

Enquiry
Download Dimension Table

FAQs

An E-clip is a radially installed retaining ring that snaps onto a grooved shaft without requiring full shaft access.

DIN 6799 is the standard specification for E-type retaining rings used on shafts.

E-clips are used in automotive components, electrical appliances, toys, and light-duty mechanical assemblies.

E-clips provide fast installation, low assembly costs, and reliable shaft retention.

Yes, E-clips are available in stainless steel and spring steel depending on application requirements.

They are pressed into the shaft groove using specialized tools or manual applicators.
